| Фирменное наименование: | phoenix |
|---|---|
| Пакет тип: | Устройство поверхностного монтажа (SMD) | Приложение: | Подсветка, индикаторные лампы, общее освещение |
|---|---|---|---|
| Световой поток: | 10-12 люмен | Температура хранения: | -40 ° C до 100 ° C. |
| Прямое напряжение: | 3,0 В–3,4 В | Власть: | 150 мА |
| Тип крепления: | СМД | Размер чипа: | 4,0 мм х 1,4 мм |

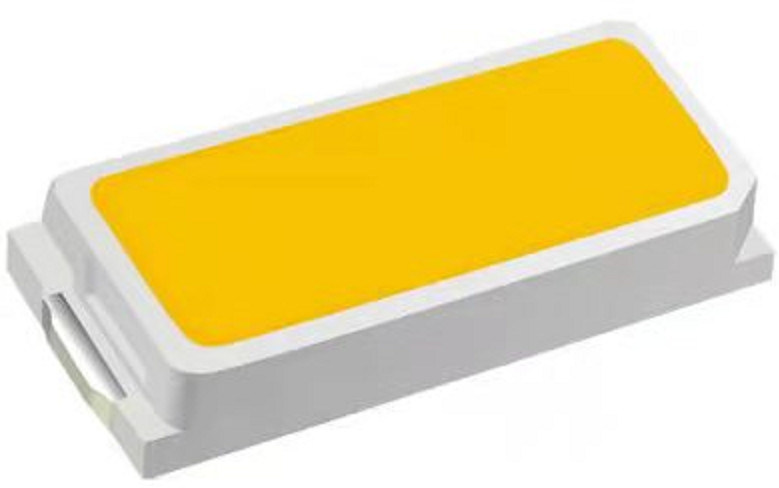

The 4014 LED Chip is a cutting-edge lighting component designed to meet the demands of modern illumination applications. Featuring a compact Surface Mount Device (SMD) package type, this LED chip offers exceptional performance while maintaining a small footprint, making it ideal for a wide range of electronic and lighting devices. With its precise dimensions of 4.0mm by 1.4mm, the 4014 LED Chip is engineered to fit seamlessly into various lighting fixtures, ensuring ease of integration and versatility in design.
This High Lumen LED Chip delivers impressive brightness levels, providing powerful illumination with remarkable energy efficiency. Its forward voltage ranges between 3.0V and 3.4V, balancing optimal power consumption with superior light output. This characteristic ensures that the LED chip operates efficiently without compromising on brightness, making it suitable for applications requiring strong and consistent lighting performance.
One of the standout features of the 4014 LED Chip is its High CRI (Color Rendering Index) capability. The High CRI LED Chip ensures that colors are rendered accurately and vividly, which is crucial for applications where true color representation is essential. Whether used in residential lighting, retail displays, or professional photographic environments, the 4014 LED Chip’s high CRI performance enhances visual clarity and color fidelity, contributing to an improved viewing experience.
Designed with durability in mind, the 4014 LED Chip can withstand a wide range of environmental conditions. It boasts a storage temperature range from -40°C to 100°C, ensuring reliable performance even in extreme temperature scenarios. This robust thermal tolerance makes the chip suitable for both indoor and outdoor applications, where varying temperature conditions could otherwise impact the longevity and functionality of lesser components.
The mounting type for the 4014 LED Chip is SMD, allowing for efficient surface mounting on printed circuit boards (PCBs). This mounting style not only facilitates automated assembly processes but also supports high-density PCB designs, enabling manufacturers to create compact and sophisticated lighting systems. The SMD mounting technique contributes to the chip’s overall reliability and mechanical stability, ensuring consistent performance over time.
In summary, the 4014 LED Chip combines high lumen output with excellent color rendering capabilities in a compact and efficient SMD package. Its forward voltage range of 3.0V to 3.4V allows for energy-efficient operation, while its wide storage temperature tolerance ensures durability across diverse environments. Whether for commercial, industrial, or residential lighting solutions, this High Lumen LED Chip and High CRI LED Chip stands out as a reliable and high-performance choice for enhancing illumination quality and visual appeal.
| Product Name | 4014 LED Chip |
| Lifespan | 50000 Hours |
| Operating Temperature | -40°C To 85°C |
| Correlated Color Temperature (CCT) | 10000K |
| Forward Voltage | 3.0V - 3.4V |
| Application | Backlighting, Indicator Lights, General Lighting (including tv backlight) |
| Viewing Angle | 120 Degrees |
| Power | 150mA |
| Storage Temperature | -40°C To 100°C |
| Color Temperature | 2700K - 6500K |
| Technology | Flip Chip |
The Phoenix 4014 LED Chip is an advanced lighting component designed to deliver exceptional performance across a wide range of applications. Featuring a compact chip size of 4.0mm x 1.4mm, this flip chip LED is ideal for scenarios where space-saving and efficient illumination are critical. Its high luminous flux output of 10-12 lumens ensures bright and clear light, making it an excellent choice for backlighting, indicator lights, and general lighting purposes.
One of the standout features of the Phoenix 4014 LED Chip is its high CRI (Color Rendering Index), which guarantees vibrant and true-to-life color representation. This makes it particularly suitable for environments where accurate color perception is essential, such as retail displays, medical devices, and premium backlighting applications. The flip chip design enhances thermal management and light extraction, improving overall efficiency and longevity.
In backlighting applications, the 4014 LED chip provides consistent and uniform illumination, ideal for LCD displays, signage, and automotive dashboards. Its ability to operate reliably within a broad temperature range of -40°C to 85°C ensures stable performance even in harsh conditions. This makes it a preferred choice for outdoor displays and automotive lighting systems where temperature fluctuations are common.
For indicator lights, the Phoenix 4014 LED Chip offers clear, bright signals that enhance visibility and safety. Its robust storage temperature range from -40°C to 100°C allows for flexible inventory management without compromising chip integrity. The chip's durability and efficiency also make it suitable for general lighting in residential, commercial, and industrial environments, where energy savings and long service life are paramount.
Overall, the Phoenix 4014 flip chip LED is a versatile and reliable lighting solution. Its combination of high CRI, compact size, and wide operating temperature range makes it ideal for a variety of lighting occasions and scenarios, including backlighting, indicator lights, and general lighting applications. Whether used in consumer electronics, automotive lighting, or architectural lighting, this high-performance LED chip delivers superior illumination quality and durability.
Our 4014 LED Chip by phoenix offers exceptional product customization services to meet your specific lighting needs. Featuring a chip size of 4.0mm X 1.4mm, this High CRI LED Chip ensures superior color rendering and vibrant illumination. With a correlated color temperature (CCT) of 10000K, it provides a bright, cool white light ideal for various applications including backlighting, indicator lights, and general lighting.
Manufactured using premium Gallium Nitride (GaN) material, the 4014 LED Chip delivers high lumen output, making it a reliable High Lumen LED Chip for demanding environments. Its storage temperature range from -40°C to 100°C guarantees durability and stability under diverse conditions.
Perfectly suited for tv backlight applications, the phoenix 4014 LED Chip combines efficiency and performance, ensuring your lighting solutions are both energy-efficient and long-lasting. Customize your order today to experience superior lighting quality tailored to your requirements.
For technical support and services related to the 4014 LED Chip, please refer to the comprehensive documentation provided with the product. Our support team is dedicated to assisting you with installation guidance, troubleshooting, and performance optimization to ensure the best results from your 4014 LED Chip.
We offer detailed datasheets, application notes, and user manuals to help you understand the specifications and capabilities of the 4014 LED Chip. For any technical inquiries, including electrical characteristics, thermal management, and compatibility issues, please consult the resources available or reach out through the official support channels.
Additionally, warranty services and replacement policies are in place to guarantee your satisfaction and product reliability. Ensure that you register your product and keep your purchase receipt for expedited support and service processing.
Our commitment is to provide prompt and effective assistance to maximize your experience with the 4014 LED Chip, ensuring high performance and longevity in your applications.
